1080x1080 IPS MIPI DSI 5 Inch Round LCD Display Color TFT LCM Panel HX8399C 50Pin

Product Categories
ESEN HK LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

1080x1080 IPS MIPI DSI 5 Inch Round LCD Display Color TFT LCM Panel HX8399C 50Pin

Brand Name : ESEN

Model Number : TS050YMM-J40-CT

Certification : ISO9001/ISO14001

Place of Origin : Shenzhen China

MOQ : No MOQ

Price : can be negotiated

Payment Terms : L/C,T/T

Supply Ability : 300K/mth

Delivery Time : 6~14 working days

Packaging Details : Cartons, Capboard, EPE, Blister Tray.

LCD size : 5.0 inch

LCD IC : HX8399C

Operating Temperature : -20℃~ +60℃

Storage Temperature : -30℃~ +70℃

Active Area : 127.008 (H) ×127.008 (V)

Number of Pixels : 1080(H) RGB × 1080(V)

Pixel Pitch : 0.1176 (H) ×0.1176 (V)

Pixel Arrangement : 1pixel 2domain

Display Colors : 16.7 M

Color Gamut : 65%(Min.) 70%(typ.)

Display Mode : Normally Black, Transmissive mode

Dimensional Outline : 136.531x132.208x1.98mm

Viewing Direction (Human Eye) : U/D/L/R free viewing direction

Custom Service : FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board

Contact Now

5.0 inch 1080x1080 IPS MIPI DSI Round LCD Display 5inch Circular Color TFT LCD Screen Module LCM Panel HX8399C 50Pin

Introduction

TS050YMM-J40-CT is a color active matrix TFT-LCD Panel using LTPS TFT's (Thin Film Transistors) as an active switching devices. This model is composed of a TFT-LCD Panel, a driving circuit and a back light system. It is a transmissive type display operating in the normal black. This TFT-LCD has a 5.0 inch diagonally measured active area with FHD resolutions (1080 horizontal by 1080 vertical pixel array). Each pixel is divided into Red, Green, Blue dots which are arranged in 1pixel 2 domain and this panel can display 16.7M colors.

Features : 0.2t Glass (Single) , High contrast ratio and wide viewing angle , Module Design , RoHS Compliant.

1080x1080 IPS MIPI DSI 5 Inch Round LCD Display Color TFT LCM Panel HX8399C 50Pin

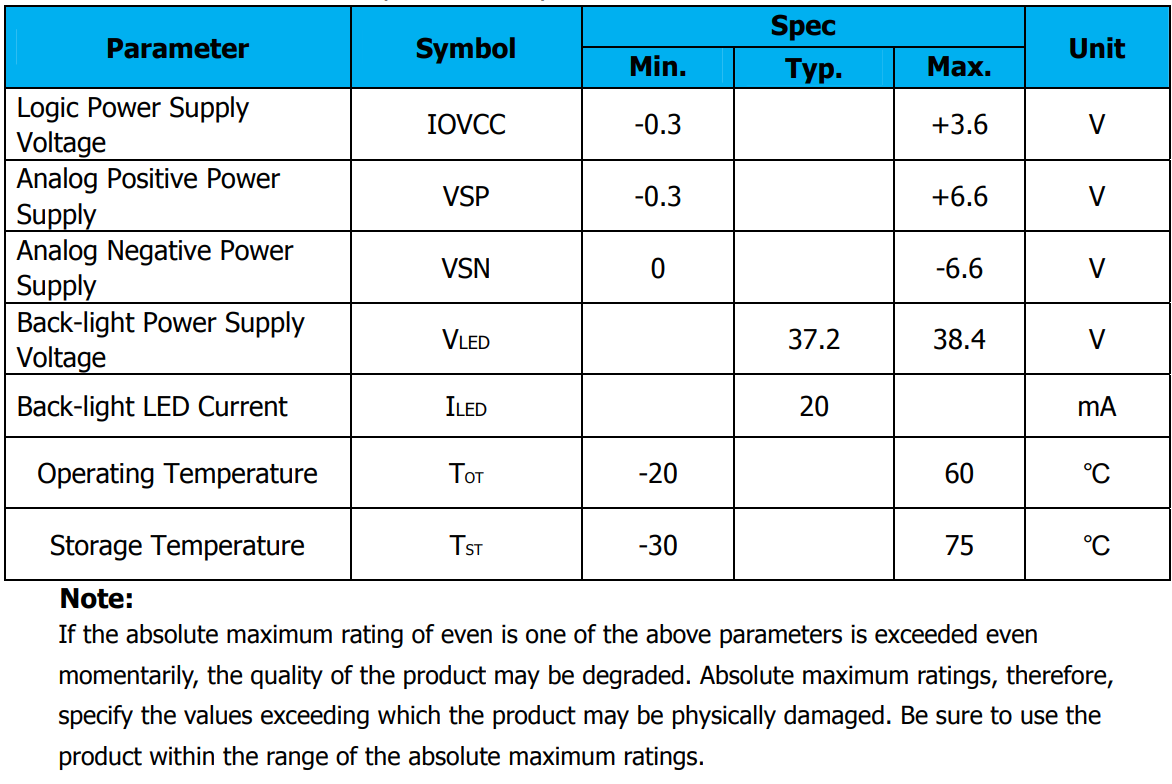

ABSOLUTE MAXIMUM RATINGS

1080x1080 IPS MIPI DSI 5 Inch Round LCD Display Color TFT LCM Panel HX8399C 50Pin

ELECTRICAL SPECIFICATIONS

1080x1080 IPS MIPI DSI 5 Inch Round LCD Display Color TFT LCM Panel HX8399C 50Pin

FAQ:

1.How can I find the right product?
Please send us your requirements or datasheet, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.
2. Do you accept sample order or small quantity order?
Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)
3. What are the payment terms?
We usually accept T/T, Paypal, other terms to be negotiated.
4.What’s the lead time?
Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and particular product).
